ADG1204YCPZ-500RL7
Manufacturer:
Analog Devices
Mfr.Part #:
ADG1204YCPZ-500RL7
Datasheet:
Description:

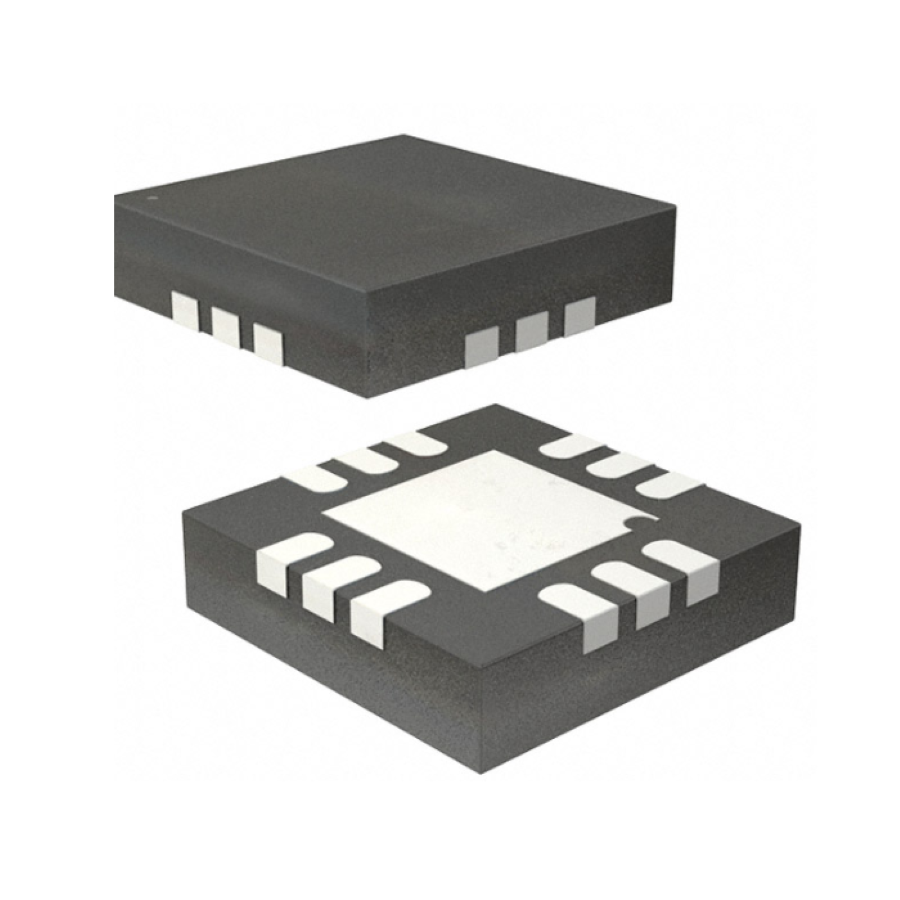

Multiplexer Switch ICs LFCSP-12 SMD/SMT Number of Channels:4 190 Ω 85 ns 110 ns
| Parameter | Value |
|---|---|
| Length | 3.15 mm |
| Width | 2.95 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Resistance | 190 Ω |
| Height | 950 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Interface | Parallel |
| Number of Circuits | 1 |
| Bandwidth | 800 MHz |
| Operating Supply Voltage | 12 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Max Power Dissipation | 1.3 mW |
| Max Supply Voltage | 13.2 V |
| Min Supply Voltage | 10.8 V |
| Power Dissipation | 1.3 mW |
| Number of Channels | 4 |
| Number of Bits | 4 |
| Turn-On Delay Time | 85 ns |
| Turn-Off Delay Time | 110 ns |
| Operating Supply Current | 250 µA |
| -3db Bandwidth | 800 MHz |
| Propagation Delay | |
| High Level Output Current | 45 mA |
| Low Level Output Current | |
| Number of Inputs | 4 |
| Throw Configuration | 4PST |
| Number of Outputs | 1 |
| Dual Supply Voltage | 15 V |
| Nominal Supply Current | 250 µA |
| Drain to Source Resistance | 190 Ω |
| Max Dual Supply Voltage | -16.5 V, 16.5 V |
| Min Dual Supply Voltage | -13.5 V, 13.5 V |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) |
| On Resistance (RON) | 190 Ω |
| Logic Family | |
| Configuration | 1 x 4:1 |
Stock: 17
Distributors
pcbx
pcbxUnit Price$4.15546
Ext.Price$4.15546
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.15546 | $4.15546 |
| 10 | $3.53549 | $35.35490 |
| 25 | $3.28007 | $82.00175 |
| 50 | $3.04310 | $152.15500 |
| 100 | $2.82328 | $282.32800 |
| 300 | $2.73550 | $820.65000 |
| 500 | $2.65043 | $1325.21500 |
| 1000 | $2.57215 | $2572.15000 |
